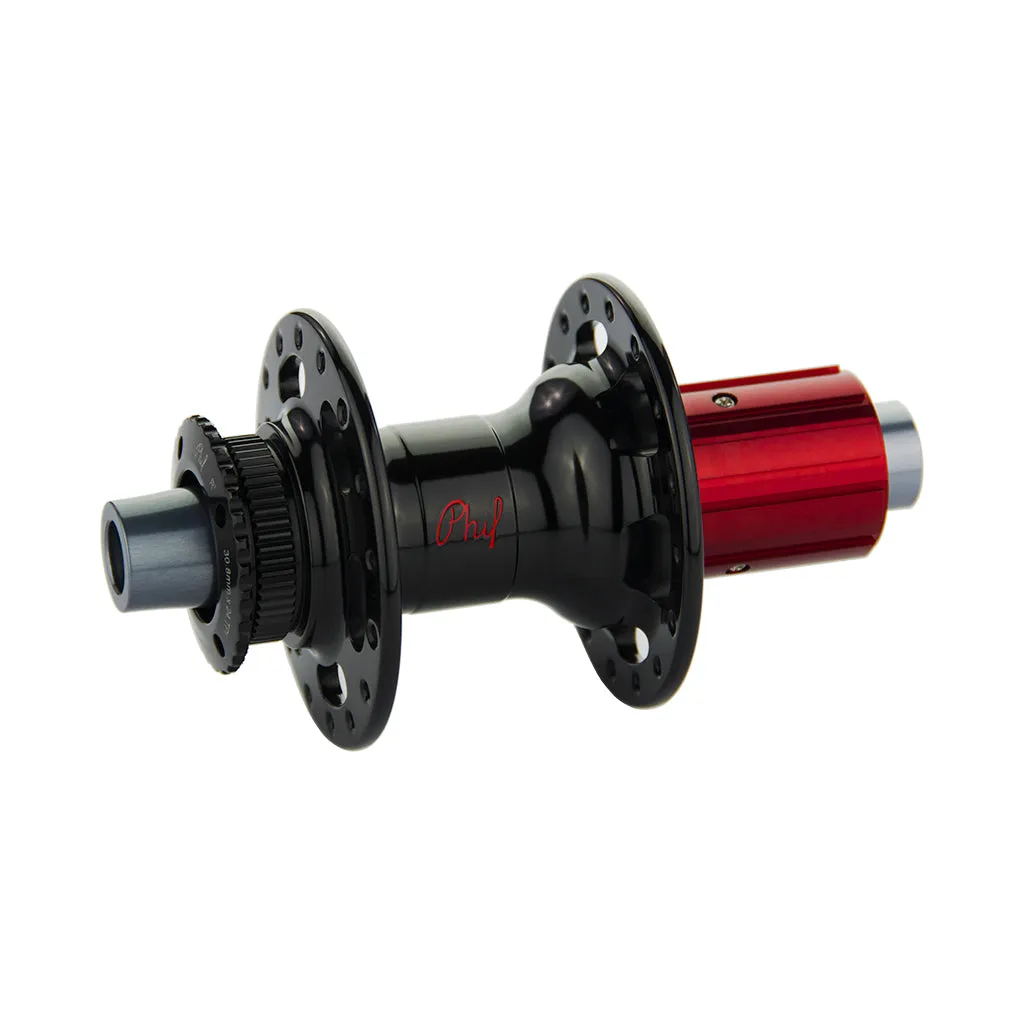

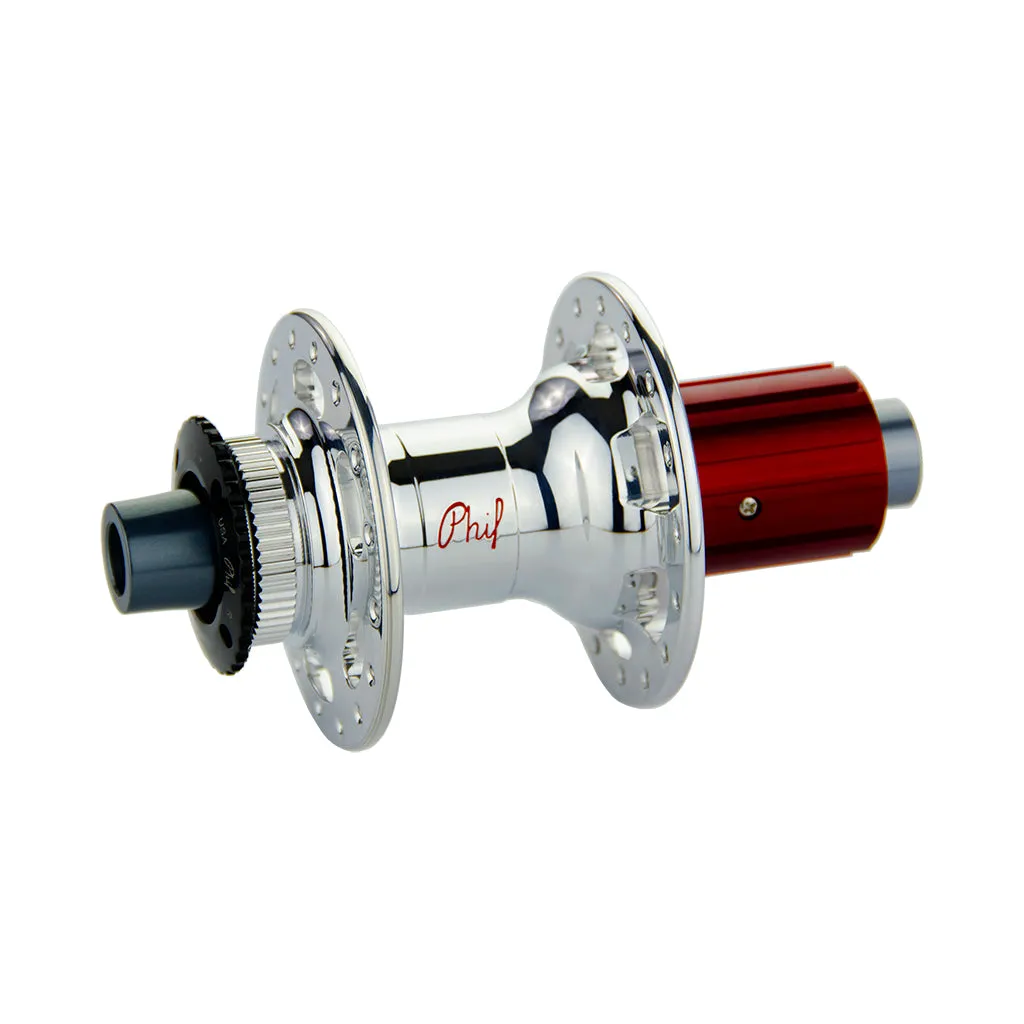

Our Pro rear Center Lock disc thru-axle hubs are available in 24, 28, and 32 spoke hole configurations (other spoke hole count options are available upon request). We also offer our rear Center Lock disc thru-axle hubs with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which have partial contact seals and have a 30% fill with our full synthetic Phil Carbonyte grease. Our 11-speed cassette hubs come with a spacer so you can run a 8, 9 or 10 speed cassette.
** PLEASE CONTACT US FOR AVAILABILITY **
| SPECIFICATIONS | |
|---|---|
| Hub shell material | 6061 Aluminum |
| Axle material | 7075 Aluminum |
| Body material | 7075 Aluminum with hard anodize coating |
| Pawl material | Stainless steel (heat-treated) |
| End cap material | 6061 Aluminum |
| Rear hub width | 142 mm |
| Axle diameter | 15 mm |
| Cassette mechanism | 5 double row pawls / 40 tooth ratchet ring |
| Cassette compatibility | Shimano 8, 9, 10 and 11-Speed |
| Disc mount pattern | Center Lock |
| Bearing availability | 6902 (Standard), 6902 (Carbonyte) |
| Rear hub weight | 427 grams |
| Rider and bike weight limit | 190 lbs / 86 kgs |
| Materials | All of our manufactured items are machined out of US-produced materials. |
| HUB DIMENSIONS | |
| Axle length | 142 mm |
| Left side flange diameter | 66 mm |
| Right side flange diameter | 66 mm |
| Left side flange to center | 35 mm |
| Right side flange to center | 18 mm |
